Competitive Advantage:
High strength chromium-molybdenum steel with high fatigue strength
and excellent wear resistance, High grade tungsten carbide inserts.
Keywords:
Button Bit, Rock Bit, Drill Bit, Rock Drill Bit, Thread Button Bit, Retrac Bit,
Dome Bit, Reaming Bit, Cross Bit, Chisel Bit, Rock Drilling Tools.
Button Bit and Insert Types | Spherical Button Characteristics:
1. Universal button
2. Good wear resistance
3. Best suited for hard ground
4. 27000-48000PSI(180 to 320Mpa)
5. Suited for abrasive to very abrasive drilling conditions.
Ballistic Button Characteristics:
1. Fast Penetration
2. Best suited for soft rock
3. 10000-20000PSI(70 to 140Mpa)
4. Suited for non-abrasive drilling conditions
Competitive Advantage:
1. High grade tungsten carbide inserts
2. Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment
NO.Button size | NO.Flushing Holes (PCS) | ||||||||

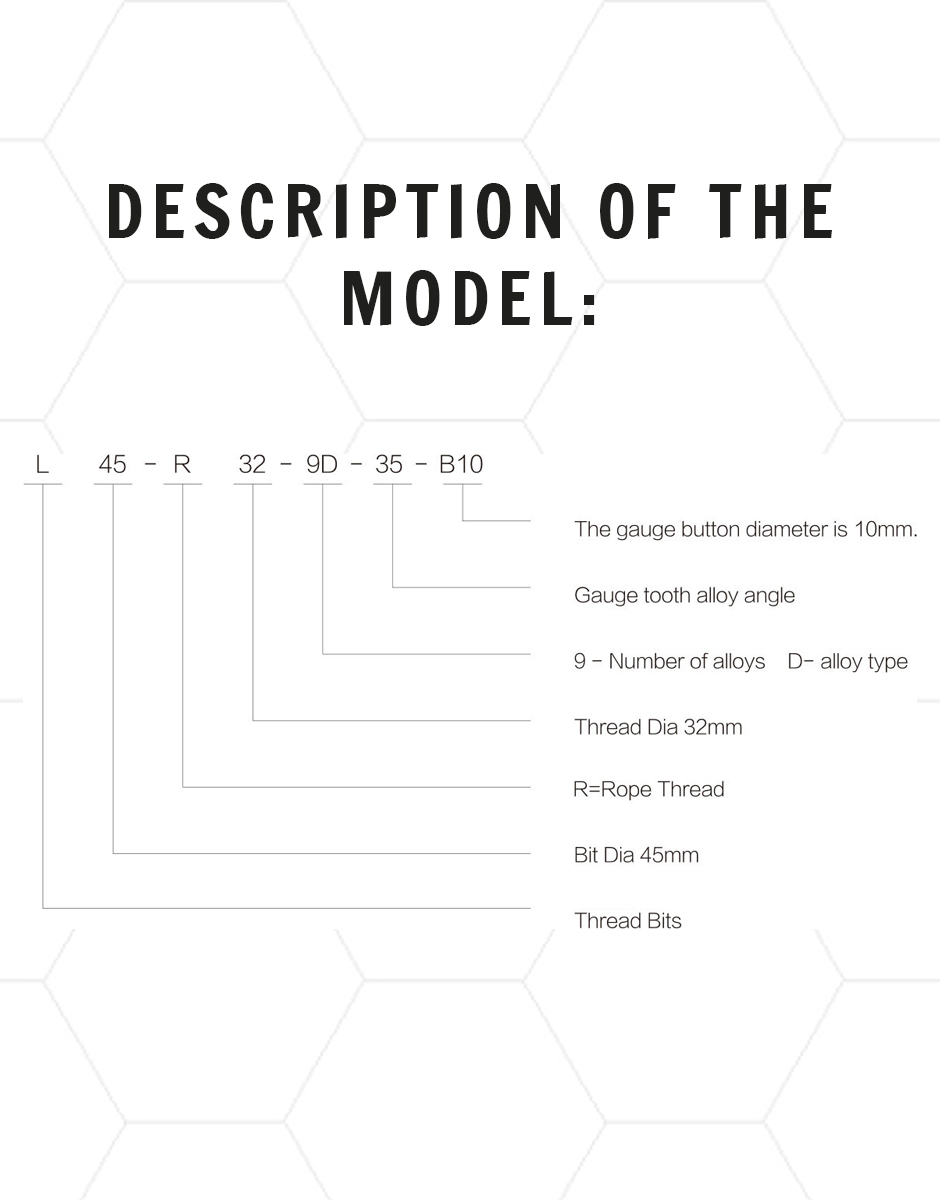

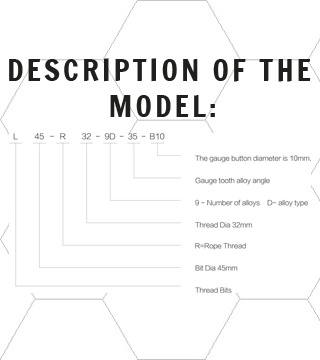

Number | Model | Bit Dia.(mm) | Thread | Gauge | Front | Gauge tooth angle | Side | Front | Weight (KG) |
L001 | L33-R22-7D-35-B7 | 33 | R22 | 5×7 | 2×7 | 35° | 2 | 1 | 0.4 |
L002 | L35-R25-7D-35-B8 | 35 | R25 | 5×8 | 2×7 | 35° | 2 | 1 | 0.4 |
L003 | L38-R25-7D-35-B8 | 38 | R25 | 5×8 | 2×7 | 35° | 1 | 2 | 0.5 |
L004 | L41-R25-7D-35-B9 | 41 | R25 | 5×9 | 2×8 | 35° | 1 | 2 | 0.55 |
L005 | L41-R28-7D-35-B9 | 41 | R28 | 5×9 | 2×8 | 35° | 1 | 2 | 0.55 |
L006 | L41-R32-7D-35-B9 | 41 | R32 | 5×9 | 2×9 | 35° | 2 | 1 | 0.55 |
L007 | L43-R32-9D-30-B9 | 43 | R32 | 6×9 | 3×8 | 30° | 1 | 2 | 0.67 |
L008 | L45-R28-9D-35-B10 | 45 | R28 | 6×10 | 3×8 | 35° | 3 | 1 | 0.8 |
L009 | L45-R32-9D-30-B10 | 45 | R32 | 6×10 | 3×8 | 35° | 2 | 1 | 0.8 |
L010 | L45-R32-9D-35-B9 | 45 | R32 | 6×9 | 3×8 | 30° | 1 | 3 | 0.8 |
L011 | L45-R32-9D-35-B10 | 45 | R32 | 6×10 | 3×8 | 35° | 1 | 3 | 0.8 |
L012 | L48-R32-9D-35-B10 | 48 | R32 | 6×10 | 3×9 | 35° | 1 | 3 | 0.9 |
L013 | L51-R32-9D-35-B10 | 51 | R32 | 6×10 | 3×9 | 35° | 1 | 3 | 1.1 |
L014 | L57-R32-9D-35-B11 | 57 | R32 | 6×11 | 3×10 | 35° | - | 3 | 1.3 |
L015 | L64-R32-9D-40-B11 | 64 | R32 | 6×12 | 3×11 | 40° | 2 | 1 | 1.6 |
L016 | L64-R32-12D-35-B10 | 64 | R32 | 8×10 | 4×10 | 35° | 2 | 2 | 1.6 |
L017 | L64-R38-9D-35-B12 | 64 | R38 | 6×12 | 3×11 | 35° | 2 | 1 | 1.6 |
L018 | L76-R32-12D-35-B11 | 76 | R32 | 6×12 | 6×12 | 35° | 1 | 2 | 2.7 |
L019 | L76-R32-12D-35-B12 | 76 | R32 | 8×12 | 4×12 | 35° | 2 | 2 | 2.7 |
L020 | L76-R38-12D-35-B12 | 76 | R38 | 8×12 | 4×12 | 35° | 2 | 2 | 2.3 |
L021 | L89-R32-13D-35-B13 | 89 | R32 | 8×13 | 5×12 | 35° | - | 3 | 2.9 |
L022 | L89-R38-13D-35-B13 | 89 | R38 | 8×13 | 5×12 | 35° | 2 | 2 | 3.3 |
L023 | L102-R32-15D-35-B12 | 102 | R32 | 14×12 | 1×11 | 35° | 2 | 3 | 3.5 |

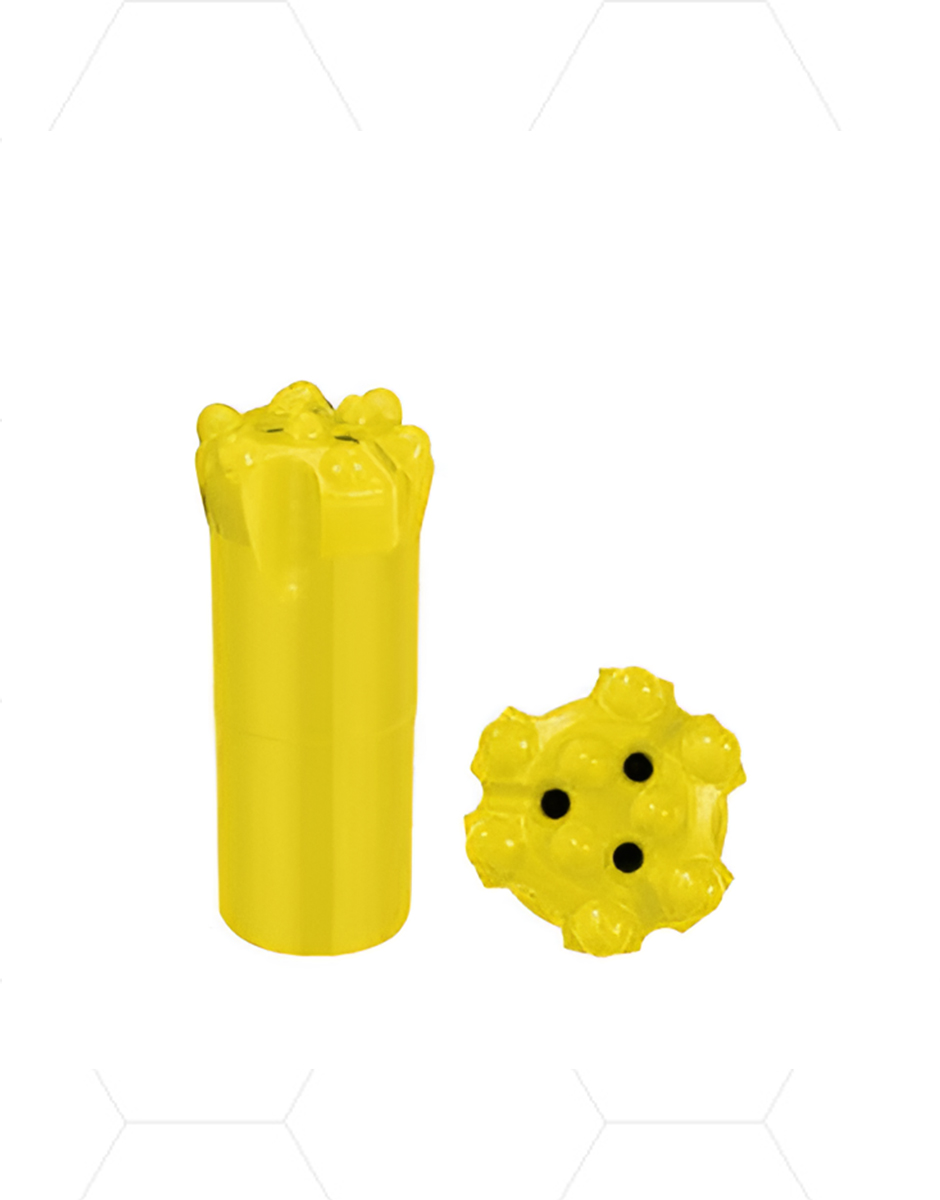

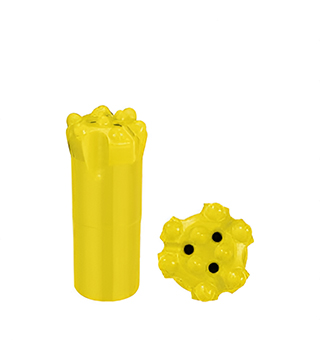

Product Name | Thread Rock Drill Bit |
---|---|
Thread | R25, R28, R32, R38, T38, T45, T51, ST58, ST68 |
Diameter | 32mm-152mm (or 1 1/4 inch to 6 inch) |
Drill Bit Type | Button Bit, Retrac Bit, Dome Bit, Reaming Bit, Cross Bit |
Carbide Insert | Spherical and ballistic |
Body Design | Normal body and retrac body |
Face Design | Flat face and drop center face |
Material | High strength alloy steel bar and tungsten carbide |
