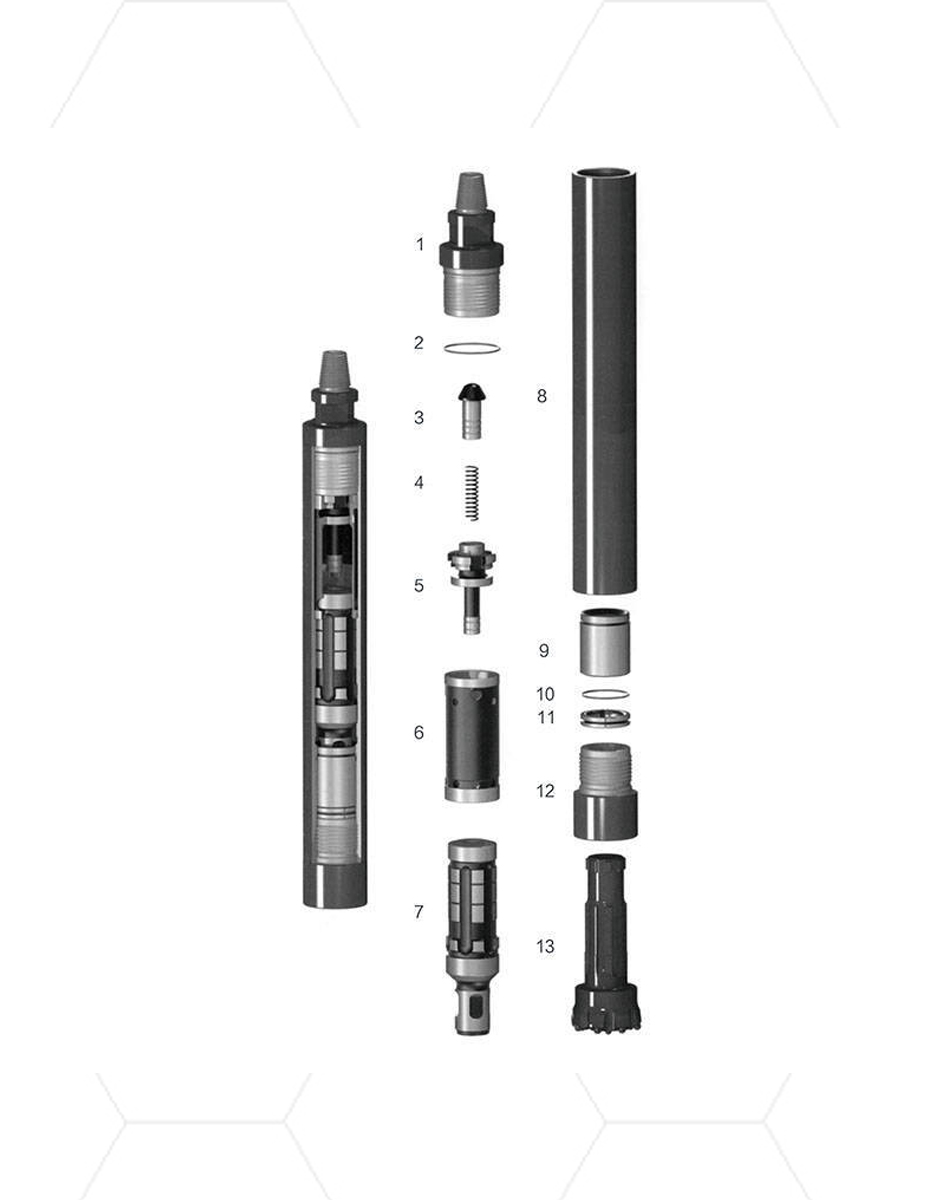

Item Description | Weight (KG) | Part Number |
1. Top Sub | 6.5 | HD45A-01 |
2. "O"-Ring of Top Sub | 0.01 | HD45A-02 |
3. Check Valve | 0.42 | HD45A-03 |
4. Spring | 0.04 | HD45A-04 |
5. Air Distributor | 2.20 | HD45A-05 |
6. Internal Cylinder | 2.3 | HD45A-06 |
7. Piston | 9 | HD45A-07 |
8. External Cylinder | 15 | HD45A-08 |
9. Guided Sleeve | 1.3 | HD45A-09 |
10. "O"Ring of Stop Ring | 0.1 | HD45A-10 |
11. Stop Ring | 0.2 | HD45A-11 |
12. Driver Chuck | 3.5 | HD45A-12 |
13. Drill Bit | HD45A-13 |
Product data | ||
Length(Without bit) | 1011mm | |
Weight(Without bit) | 43.2Kg | |
Bits shank | Cop44/DHD340/HD45 | |
External diameter | Φ99mm | |
Bits diameter | Φ110-Φ135mm | |
Connection Thread | API 2 3/8"Reg | |
Working Pressure | 1.0-3.0Mpa | |
Impace rate at.1.7Mpa | 30Hz | |
Recommended rotation speed | 25-40r/min | |
Air consumption | 1.0Mpa 6m³/min |
1.8Mpa 10m³/min |
